TRI-0003 Tri-Spark Triple Flex – BSA Triumph Triples

Tri-Spark Triple Flex Electronic Ignition System for classic 750cc Triumph T150 & T160 Trident or BSA A75 Rocket 3 models. Powerful and versatile ignition system for our favourite triples. This system has the best of both worlds – simplicity of the wasted spark and the power of single fire systems.

– Flexible coil options. Use 6-volt or 12 volt coils
– Easy starting
– Set and forget no maintenance required.

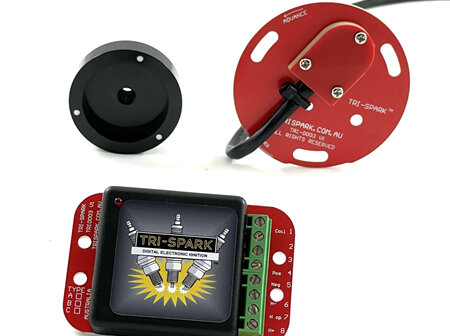

Advance curve tuned for steady idle, good throttle response and fuel-efficient riding. The pickup unit is built on a robust aluminium plate with the cable attached and ready for easy installation. There’s a cover over the hall sensor, extra support for the cable and no exposed connections. A hole in the backing plate aligns with the triggering rotor for foolproof static timing.

The control box is based on our well proven compass design featuring extreme high voltage power surge capability and flexible coil options. You can use the same box for 6-volt, 12 volt and mini digital coils – a first. The box has a removable potting compound making it easily repairable if needed.

Customers have asked for a robust and powerful system that’s easy to install and works great on the road and here it is. Simple screw terminal connections to the bike’s wiring makes it flexible for all installations wherever the box is installed on the bike.

Coil Options

12V Tri-Spark high performance coils – 3 required; (IGC-1012).

Recommended accessories:
– Spark plug lead – 3 required. Right angle coil end (SPL-0020) or Straight coil end (SPL-0010
– 5k suppressor caps – 3 required. Spark plug cap (SPL-0030) or Small spark plug cap (SPL-0040)


6V Tri-Spark high performance coils – 3 required; (IGC-1006).

Recommended accessories:
– Spark plug lead – 3 required. Right angle coil end (SPL-0020) or Straight coil end (SPL-0010)

– 5k suppressor caps – 3 required. Spark plug cap (SPL-0030) or Small spark plug cap (SPL-0040)


Part Number: TRI-0003

NOTE: No ballast resistor is required with ANY of the coil options with the Flex installation.
